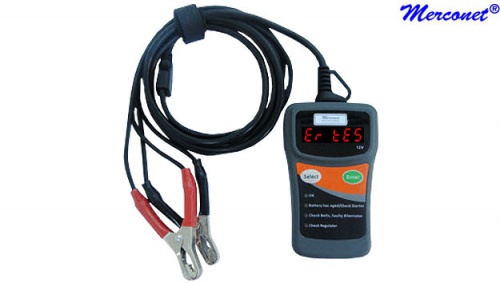

ADA0 Auto Generator & Ontsteking tester



Bestel
Detail

The ADA0 tester conducts a voltage draw test on the battery during starting, the highest volt drop will be captured during cranking and the results will be shown to determine the battery aging and the starter condition.

Most of the time, a car battery failure is in association with the inability of alternator to charge in a rightful manner. To check the charging condition of the alternator, our tester will first look into the charging characteristics during no electrical load at 3,000 RPM and loading at 2,000 RPM. The highest and the lowest charging volts readings will be captured and then evaluated after the test and its results will be shown. For Starter Test, the voltage draw during cranking will be captured and calculations will be done to determine the starter condition and battery aging status. No Load Test @ 3000 RPM:

Load Test @ 2000 RPM:

The advantages of this tester are:
1. A fast and accurate way to know the condition of the alternator, starter after test.
2. Simple hookup clamp to battery terminals only.
3. Easy to operate, no assistance needed.
4. Bright LED displays even in dim areas.
5. It also can determine whether the battery has aged.
6. Clear scrolling instructions given.
7. No internal batteries and maintenance required.
8. Reverse Polarity protected.
Kenmerk
  • The ADA0 tests:
    - Starter Cranking Condition
    - Alternator Charging Condition in No electrical Load and Loading condition.
  • It is very useful for checking the Alternator charging condition when the "Battery" symbol lights up in the dashboard.
  • It gives a fast and accurate test results:
    - OK
    - Battery has Aged / Check Starte
    - Check Belt, Faulty Alternator
    - Check Regulator
Specificatie
Operating voltage: 9 ~ 15 Volts DC
Battery Type: 12V
Type of alternator: Suitable for all vehicles with 12Volts DC charging systems
Starter Test: Yes
Alternator test: Yes
Screen display: LED
Show state of charge in Volts: Yes
Reverse polarity protection: Yes
Surface charge warning: Yes
Cable length: 170cm.
Dimensions: 8 x 8 x 18cm.(standard packing)
Weight: 0.37kg
Goedkeuring: CE, RoHS en WEEE
Content
- ADA0 Auto Generator & Ontsteking tester
- GB10 Gebruiksaanwijzing
Optie
Prijs
124,63 € (103,00 € excl VAT) each
