ACE1 6km Grafische TDR met software



Bestel
Detail

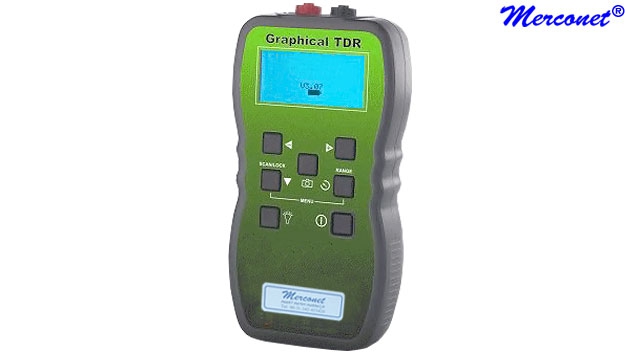

The ACE1 is a hand held Time Domain Reflectometer weighing only 350 grams with a 6km range and the capacity to store 50 traces with time, date, Vp value, impedance, cursor position and range, saved data may then be downloaded to PC via the USB link using Trace Xtra PC software provided. Historical data may be uploaded to the ACE1 for comparison with current measurements. With a 3 nano second pulse rise time giving a dead zone of only 0.5 mtrs near end and cable faults can be clearly identified. Using pre determined gain and pulse width and with only 5 control buttons, all major operating and setting parameters can be easily accessed. A 6km cable run can be scanned in seconds allowing the operator a view of this cable run, yet arriving quickly to the fault. By using the scan lock facility, the cable can be continuously scanned for the location of intermittent faults or the trace held for closer examination. To enable the ACE1 to test all metallic cables, 4 user selectable impedance settings are provided, 25, 50, 75 and 100 ohms with Vp settings of 1-99% or the equivalent in feet or meters per micro second. Faulty cables may be traced using the warble tone feature, an oscillating tone is injected into the power or transmission line and by using a comerically available tone tracing probe, the suspect line can be identified, for this function an optional receiver is required. The ACE1 is CE approved and is housed in a rugged ABS enclosure rated to IP54.

Kenmerk
  • USB 2.0 Interface with a Windows compatible software TraceXtra to download/analyse traces
  • Rugged Palm-Top design
  • Weighs less than 350g
  • 11 Measurement Ranges up to 6000m(6km)
  • 25, 50, 75 & 100 Ohm Selectable Cable Impedance
  • Memory capacity up to 50 saved traces
  • Built in Tone Generator for Pair Tracing and Identification
  • Suitable for testing all Communication and Power Cables
  • Environmental Protection IP54
Specificatie
Length: 6km
Impedance: 25, 50, 75 & 100 Ω
Dead zone: 0.5 m
Ranges Meters Kilometers: 7, 15, 30, 60, 120, 250, 500, 1km, 2km, 3km, 6km
Range step: 11
Accuracy: 1% of selected range*
Resolution: 1% of range
Range selection: Manual
Sensitivity: Min 3 pixel return at 4km on 0.6mm Ø, PE, TP
Output Pulse Width: 3 ns to 3 ms, connected to range setting
NVP VoP Velocity Factor: Adjustable from 1% to 99%
Scan Rate: 2 scans / second or scan held (not on 3km/6km range)
Output Pulse: 5 volts peak to peak. Into open circuit
PC software: Yes
Memory capacity: 50 Traces
Tone Generator: 810 - 1100Hz
Connector: 2x Banana chassis USB
Display: 64 x 128 pixel
Backlight: Yes
Voltage Protection: 250 volts AC
Battery Life: 60 hours continuous scanning
Power Supply: 6 volts 4 x 1.5 AA Alkaline cell
Power Down: Selectable 1, 2, 3, 5 minutes or disabled
Operating Temperature: -10° / 50°C
Storage Temperature: -20° / 70°C
Dimensions: 165 x 90 x 37 mm
Weight 350 grams
Standards: IEC 61010-1
  EN 60950
  ISO9001
EMC: BS/EN 61326-1
Water/Dust Proof: IP54
Goedkeuring: CE, RoHS en WEEE
* Measurement accuracy of <+/- 1% assumes the instrument
setting for velocity of propergation (Vp) of the cable under test to be
accurately set, homogeneity of the Vp along the cable length,
and accurate cursor positioning.

Content
- Main unit
- AJJ3 Banaan naar krokodilbek ACE0/ACE1/ACE2
- AJJ4 Tas ACE0/ACE1/ACE2/GT21/GT22
- AJJ6 USB Kabel ACE1
- AJJ7 CD Software en Engels gebruiksaanwijzing ACE1

Optie
- CU03 Cursus analoge telefonie en ondergrondse netwerken
- KO10 Instrumentkoffer medium (105 mm)
- ON80 Ontvanger 9001
Prijs
1.007,93 € (833,00 € excl VAT) each
