MK08 123dB SPL microfoon
GB10 Gebruiksaanwijzing
MK08 123dB SPL microfoon
Detail

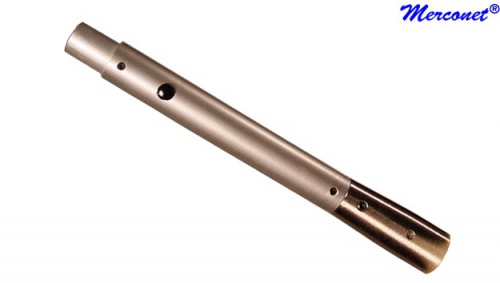

The MK08 is an Instrument quality microphone for use with models DS30, DS33, DS34, LM27P5 Real Time Analyzers, MX40 Multiplexer and GM11 SPL Meter. In the field calibration adjustment provided.
Kenmerk
Specificatie
| Cartridge Type: | Omni-directional electret condenser |
| Sound Input: | 123dB SPL maximum |
| Output: | XLR 3 Pin male. Pin (1) ground, Pin (2) Hot, Pin (3) Neutral. |
| Works with: 600 ohm balanced input | |
| Frequency Response: | 20Hz - 20kHz |
| Housing Material: | Silver matte anodized aluminum |
| Power Requirements: | 12 -48Vdc phantom |
| Size: | 6½" x 5/8" body, ½" capsule housing(L x Dia) |
| Weight: | 2oz. |
| Goedkeuring: | CE, RoHS en WEEE |
Content
Optie
Prijs
422,29 € (349,00 € excl. btw) stuk
